Architecture

Components

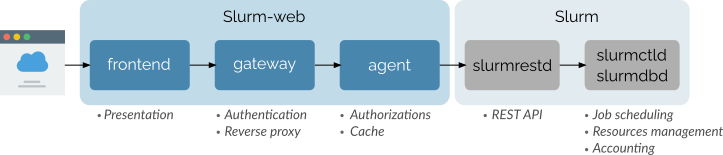

This diagram represents all Slurm-web components with their respective roles and integration with Slurm workload manager:

slurm web architecture
Slurm-web architecture with components roles [ SVG]

Slurm-web is based on 3 components:

  • agent: Sends requests to Slurm slurmrestd service which exposes a REST API for slurmctld and slurmdbd daemons. The agent is also in charge of the authorizations enforcement and acts as a caching layer over Slurm.

  • gateway: Performs user authentication and acts as a reserve proxy for the agents.

  • frontend: The representation layer for the user interface. It is actually served by the gateway application and executed on client side in web browsers.

Integration

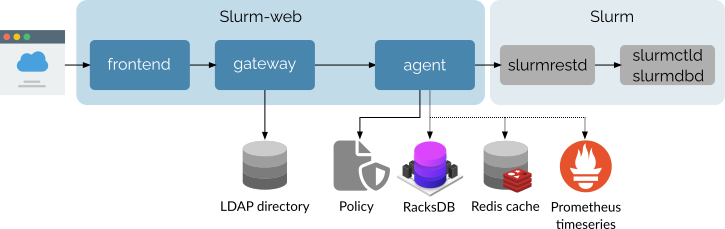

In addition to Slurm workload manager, Slurm-web interacts with some other external services and data sources:

slurm web integration
Slurm-web integration with external components [ SVG]

The gateway component authenticates users with an entreprise LDAP directory. Slurm-web supports all major LDAP services implementation such as OpenLDAP, FreeIPA and Active Directory with legacy NIS and RFC 2307 bis schemas.

The agent component reads the RBAC autorization policy from a plain INI file with permissions associated to roles and LDAP groups.

Optionally, the agent can also:

Protocols

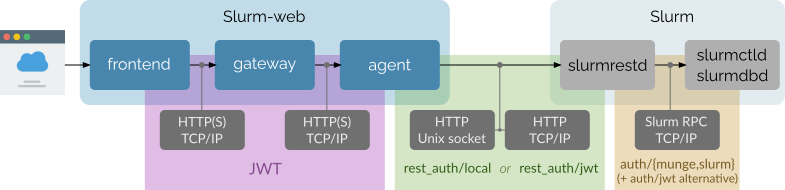

Protocols and authentication realms involved in communications between Slurm-web and Slurm components are represented in this diagram:

slurm web protocols
Protocols in communication between Slurm-web components [ SVG]

All communications from the clients web browsers to Slurm-web agent component are performed with HTTP over TCP/IP network protocols. These network communications can be secured with SSL/TLS (aka. HTTPS) over standard port TCP/443 with a production HTTP server. After initial authentication with LDAP directory, users are authenticated between these components with JSON Web Token (JWT). Slurm-web has its own JWT realm, with its dedicated JWT signing key, to secure communication between its components.

Slurm slurmrestd supports incoming HTTP requests on:

  • Unix socket, with two authentication methods: rest_auth/local, in which slurmrestd authenticates users with client process UID/GID, and rest_auth/jwt with tokens signed by Slurm JWT signing key.

  • TCP/IP socket, with rest_auth/jwt authentication supported only.

Slurm-web agent supports all these combinations of sockets and authentication methods. Please refer to slurmrestd access configuration page for more details.

Slurm components communicates with specific binary RPC protocol over TCP/IP sockets, secured by either Munge or Slurm internal mechanism. When JWT authentication is used between Slurm-web agent and Slurm slurmrestd service, the auth/jwt alternative authentication type must also be enabled in main Slurm and slurmdbd configuration.

Multi-clusters Distribution

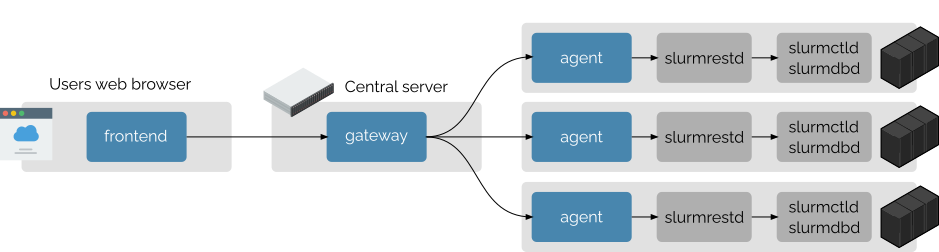

Slurm-web is designed to support natively multiple HPC clusters with a central dashboard. In this configuration, the components are distributed as represented in this diagram:

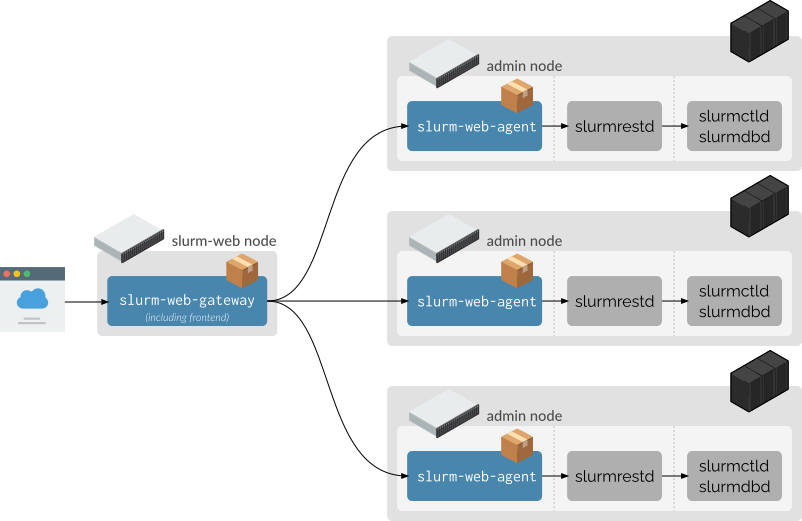

slurm web distribution
Slurm-web distribution on multiple clusters [ SVG]

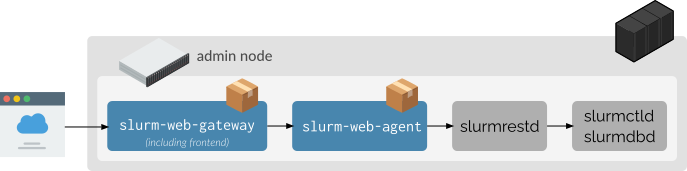

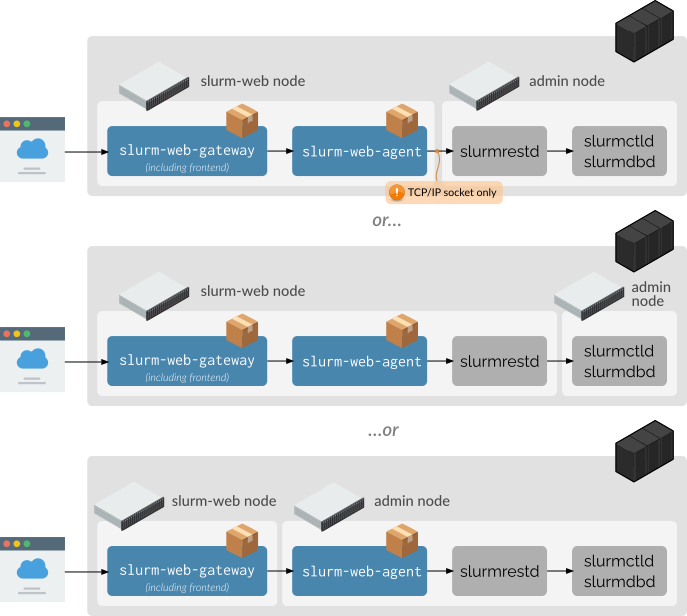

In this configuration, the agent component must be deployed on all clusters collocated with Slurm slurmrestd daemon. An agent interacts with only one Slurm cluster.

The gateway can be installed on a central server. It distributes the requests to the agents deployed on the clusters.

Slurm REST API versions

Slurm-web 4.2.0 is officially tested and supported with Slurm REST API v0.0.40. This version of Slurm REST API is available in Slurm 23.11, 24.05 and 24.11.

This table represents all Slurm REST API versions supported by the latest Slurm releases:

REST API versions by Slurm releases

Slurm releases

Supported API versions

Latest

Compatible

Deprecated

23.02

0.0.39

0.0.38

0.0.37

23.11

0.0.40

0.0.39

0.0.38

24.05

0.0.41

0.0.40

0.0.39

24.11

0.0.42

0.0.41

0.0.40
