Slurmrestd Access

This page describes how-to setup Slurm slurmrestd service and Slurm-web agent with:

  • Unix socket,

  • local authentication.

< back to all slurmrestd setups

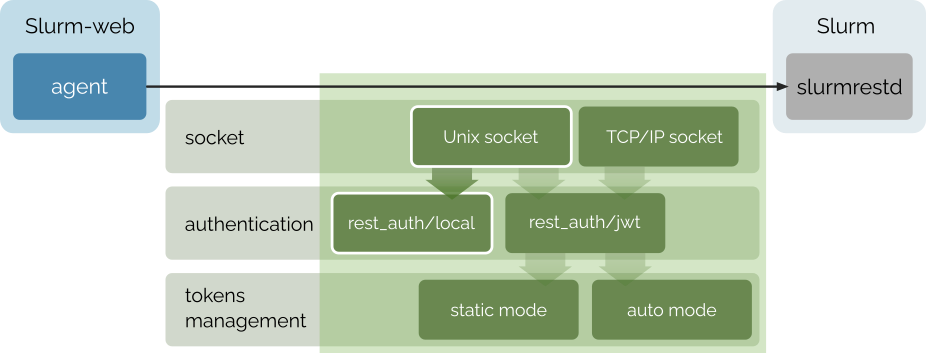

slurmrestd access modes unix local
The local authentication method is deprecated since Slurm-web v5 because it requires to run slurmrestd as slurm system user which is not supported anymore in Slurm ≥ 25.05. It is recommended to use default jwt authentication method.

With local authentication method, slurmrestd service authenticates the user with UID/GID of the client process, which must match UID/GID of slurmrestd service itself.

In this configuration, both slurmrestd service and Slurm-web agent must run as special slurm administrator user to get full permissions on Slurm cluster. This is usually not recommended but it can be considered safe in this case because Slurm-web has its own internal security autorization policy to control users permissions and enforce security.

Setup slurmrestd

Create /etc/systemd/system/slurmrestd.service.d/slurm-web.conf drop-in configuration override for slurmrestd service:

[Service]
# Unset vendor unit ExecStart to avoid cumulative definition
ExecStart=
Environment=
# Disable slurm user security check
Environment=SLURMRESTD_SECURITY=disable_user_check
ExecStart=/usr/sbin/slurmrestd $SLURMRESTD_OPTIONS -a rest_auth/local unix:/run/slurmrestd/slurmrestd.socket
RuntimeDirectory=slurmrestd
RuntimeDirectoryMode=0755
User=slurm
Group=slurm
The environment variable SLURMRESTD_SECURITY=disable_user_check is defined to force slurmrestd run as slurm administrator user.

Reload systemd units and enable the service:

# systemctl daemon-reload && systemctl enable --now slurmrestd.service

Setup Agent

Edit Slurm-web agent configuration file /etc/slurm-web/agent.ini to enable local authentication method:

[slurmrestd]
auth=local

Add permission to slurm user on Slurm-web JWT signing key:

# /usr/libexec/slurm-web/slurm-web-gen-jwt-key --with-slurm
INFO ⸬ Setting read permission on key for slurm user

Edit Slurm-web agent service to run as privileged slurm system user:

  • Native service

  • Production HTTP server

With native services, edit agent service settings:

# systemctl edit slurm-web-agent.service

Add the following lines:

[Service]
User=slurm

When using production HTTP server, edit agent uWSGI service settings /etc/systemd/system/slurm-web-agent-uwsgi.service:

--- a/etc/systemd/system/slurm-web-agent-uwsgi.service
+++ b/etc/systemd/system/slurm-web-agent-uwsgi.service
@@ -5,7 +5,7 @@
 [Service]
 # By default, this service runs with slurm-web. When local authentication is
 # used on slurmrestd, this must be changed to run as slurm system user.
-User=slurm-web
+User=slurm
 RuntimeDirectory=slurm-web-agent
 ExecStart=/usr/bin/uwsgi --ini /usr/share/slurm-web/wsgi/agent/slurm-web-agent.ini

Reload service units:

# systemctl daemon-reload

Test Access

To test Slurm-web agent and slurmrestd service configuration parameters, you can run slurm-web-connect-check utility. It tries to send HTTP request to slurmrestd with Slurm-web agent configuration parameters and reports the status. For example:

# /usr/libexec/slurm-web/slurm-web-connect-check
✅ connection successful (slurm: 24.11.0, cluster: hpc)

Restart agent

Upon succesful test, restart agent service to apply changes:

  • Native service

  • Production HTTP server

When using default native service:

# systemctl restart slurm-web-agent.service

When using production HTTP server:

# systemctl restart slurm-web-agent-uwsgi.service
