LDAP Authentication

Slurm-web supports users authentication with an enterprise LDAP directory (OpenLDAP, FreeIPA, Active Directory, etc.).

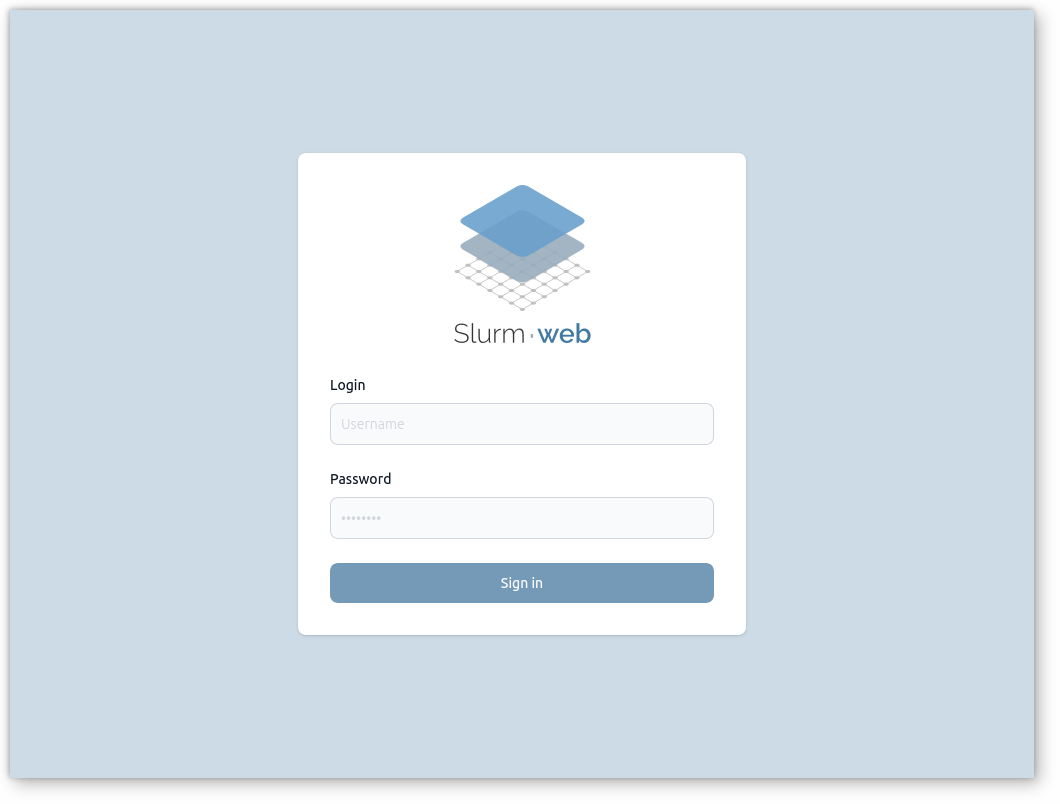

Users enter their directory username and password on the login page. The gateway validates credentials and group memberships with LDAP, then issues a Slurm-web JWT for the session.

Prerequisites

The gateway host must reach the LDAP server (network, firewall, DNS).
HTTPS is strongly recommended on the production HTTP server in front of the gateway to protect passwords in transit. See production HTTP server setup.
LDAP search bases (user_base, group_base) must match your directory layout.

Authentication flow

The diagram below shows the main components and message exchanges when a user opens the dashboard and signs in with LDAP:

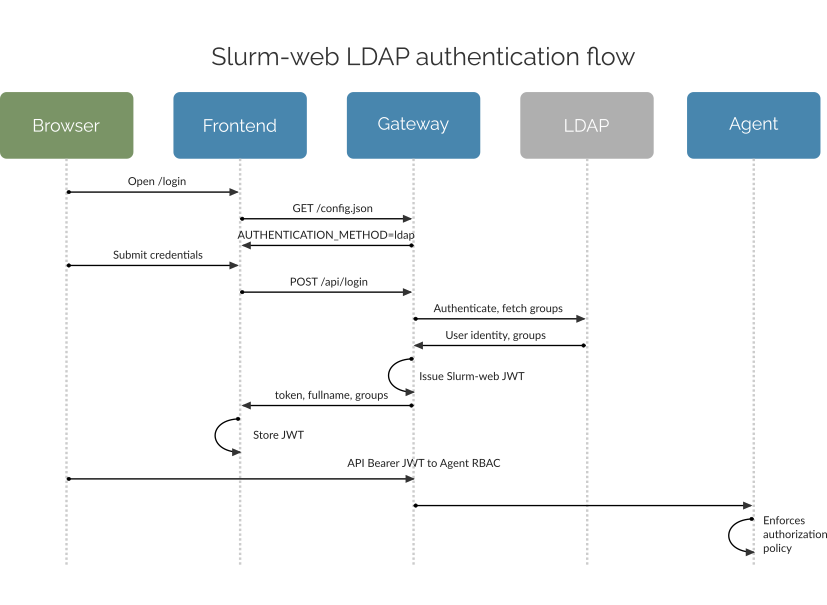

Figure 1. LDAP authentication flow [ SVG]

Steps

The user opens the login page in the browser. The frontend loads ui configuration from GET /config.json and learns that AUTHENTICATION_METHOD is ldap.
The user submits username and password in the login form.
The frontend sends POST /api/login with credentials to the gateway.
The gateway connects to the LDAP directory, authenticates the user, and retrieves group memberships.
The gateway issues a Slurm-web JWT containing login, full name, and groups.
The frontend stores the JWT in the browser and uses it as a Bearer token on later API calls.
The gateway proxies requests to cluster agents with the same JWT.
Each agent applies authorization policy using JWT groups.

Group membership lookup supports both RFC 2307 (legacy NIS) and RFC 2307 bis layouts:

RFC 2307 (NIS) — groups are usually posixGroup entries; members are listed with memberUid (login name). The user’s primary group (gidNumber on the user entry) is included when a posixGroup shares the same gidNumber.
RFC 2307 bis — groups often use groupOfNames (alongside or instead of posixGroup); members are listed with member (full user DN).

By default, group_object_classes is posixGroup and groupOfNames. At login, the gateway searches under group_base for groups matching memberUid=<login>, member=<user DN>, or the user’s primary gidNumber.

Setup

Enable LDAP in /etc/slurm-web/gateway.ini with method=ldap and a [ldap] section adapted to your directory:

[authentication]
enabled=yes
method=ldap

[ldap]
uri=ldap://ldap.example.com (1)
user_base=ou=people,dc=example,dc=org (2)
group_base=ou=groups,dc=example,dc=org (3)

1	LDAP server URI (`ldap://`, `ldaps://`, or `ldap://` with `starttls`).
2	Subtree where user entries are searched.
3	Subtree where group entries are searched.

Other common [ldap] options:

bind_dn, bind_password, or bind_password_file — service account bind when anonymous search is not permitted
group_object_classes, group_name_attribute, and related parameters — when your directory uses other object classes or attribute names than the defaults
cacert and starttls — TLS to the directory
restricted_groups — allow sign-in only for listed groups; when omitted, any user who can authenticate in the directory may connect. Names must match @group entries in policy

See full ldap parameter reference.

Restart the gateway after any change to gateway.ini:

Native service
Production HTTP server
Containers
Compose

When using default native service:

# systemctl restart slurm-web-gateway.service

When using production HTTP server:

# systemctl restart slurm-web-gateway-uwsgi.service

When using raw containers:

$ docker restart slurm-web-gateway

With Podman:

$ podman restart slurm-web-gateway

When using the reference Compose stack:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) docker compose restart gateway

With Podman Compose:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) podman compose restart gateway

Troubleshooting

A utility is available to validate LDAP configuration: slurm-web ldap-check. This command is installed with Slurm-web gateway. It validates LDAP settings in the gateway configuration file:

System packages
Docker
Podman
Compose

# slurm-web ldap-check

$ docker run --rm \
    --user $(id -u slurm-web):$(id -g slurm-web) \
    -v /etc/slurm-web/gateway.ini:/etc/slurm-web/gateway.ini:ro \
    -v /var/lib/slurm-web:/var/lib/slurm-web \
    ghcr.io/rackslab/slurm-web-gateway:latest ldap-check

$ podman run --rm \
    --userns=keep-id --user $(id -u slurm-web):$(id -g slurm-web) \
    -v /etc/slurm-web/gateway.ini:/etc/slurm-web/gateway.ini:ro \
    -v /var/lib/slurm-web:/var/lib/slurm-web \
    ghcr.io/rackslab/slurm-web-gateway:latest ldap-check

With rootful Podman, omit --userns=keep-id.

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) docker compose run --rm gateway ldap-check

With Podman Compose:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) podman compose run --rm gateway ldap-check

For example, when LDAP is configured successfully:

INFO ⸬ Running slurm-web ldap-check
Found 10 user(s) in LDAP directory:
- sstevenson (Scott Stevenson) [users, admin]
- jwalls (Jennifer Walls) [users, biology]
- strevino (Samantha Trevino) [users, biology]
- cingram (Christopher Ingram) [users, biology]
- nlee (Nathan Lee) [users, biology]
- mdavis (Michael Davis) [users, physic, acoustic]
- mgardner (Micheal Gardner) [users, physic, acoustic]
- kthomas (Kevin Thomas) [users, physic, acoustic]
- clewis (Charles Lewis) [users, physic, optic]
- msantos (Michelle Santos) [users, physic, optic]

When LDAP is configured successfully, the command prints users in the directory with their group memberships, as visible to the Slurm-web gateway. Otherwise, a message is printed to help diagnose the error.

To help diagnose errors, use the following flags for more detailed debug output:

System packages
Docker
Podman
Compose

# slurm-web ldap-check --debug --debug-flags rfl

$ docker run --rm \
    --user $(id -u slurm-web):$(id -g slurm-web) \
    -v /etc/slurm-web/gateway.ini:/etc/slurm-web/gateway.ini:ro \
    -v /var/lib/slurm-web:/var/lib/slurm-web \
    ghcr.io/rackslab/slurm-web-gateway:latest ldap-check --debug --debug-flags rfl

$ podman run --rm \
    --userns=keep-id --user $(id -u slurm-web):$(id -g slurm-web) \
    -v /etc/slurm-web/gateway.ini:/etc/slurm-web/gateway.ini:ro \
    -v /var/lib/slurm-web:/var/lib/slurm-web \
    ghcr.io/rackslab/slurm-web-gateway:latest ldap-check --debug --debug-flags rfl

With rootful Podman, omit --userns=keep-id.

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) docker compose run --rm gateway ldap-check --debug --debug-flags rfl

With Podman Compose:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) podman compose run --rm gateway ldap-check --debug --debug-flags rfl

This adds LDAP request filters sent to the server and intermediate results.

Some common errors and their potential causes:

Symptom Things to check

Symptom	Things to check
Bind or connection errors	LDAP URI, firewall, TLS settings (`cacert`, STARTTLS), `bind_dn` credentials
User not found	`user_base`, `lookup_user_dn`, username format
Empty or wrong groups	`group_base`, group object classes, `lookup_as_user`
User cannot sign in despite valid directory account	`restricted_groups` on gateway; group names must match policy `@group` entries

Bind or connection errors

LDAP URI, firewall, TLS settings (cacert, STARTTLS), bind_dn credentials

User not found

user_base, lookup_user_dn, username format

Empty or wrong groups

group_base, group object classes, lookup_as_user

User cannot sign in despite valid directory account

restricted_groups on gateway; group names must match policy @group entries
