OIDC Authentication (SSO)

Slurm-web supports users authentication with single sign-on (SSO) with an OpenID Connect (OIDC) identity provider (eg. Keycloak or Authentik).

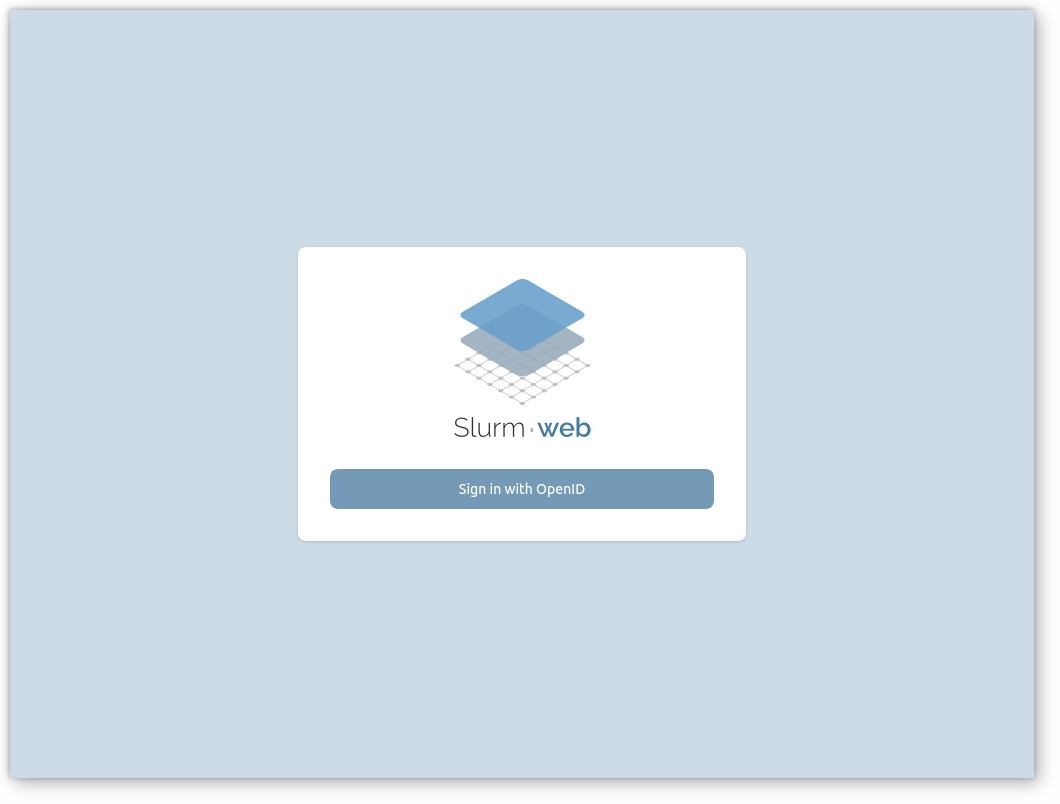

slurm web oidc auth

Users sign in through the login page with their identity provider credentials. The gateway validates the credentials and group memberships with the identity provider, then issues a Slurm-web JWT for the session.

Prerequisites

  • HTTPS on the production HTTP server in front of the gateway.

  • Identity provider client configured for the authorization code flow.

  • The identity provider must expose user groups in the ID token or userinfo, under the claim configured with groups_claim (default: groups).

OIDC authentication is not supported on RHEL 8 (and compatibles), SLES 15 and openSUSE Leap 15 because the Authlib library required by the gateway is not available on these platforms.

Authentication flow

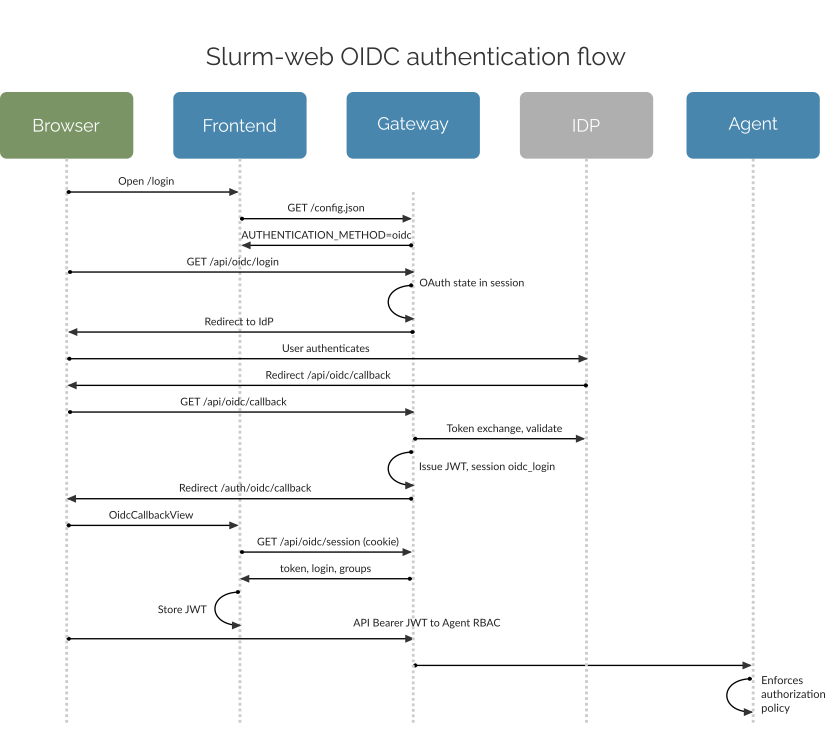

The diagram below shows the browser, frontend, gateway, identity provider, and agent interactions involved in OIDC authentication:

slurm web oidc auth flow
Figure 1. OIDC authentication flow [ SVG]
Steps

  1. The user opens the login page. The frontend loads GET /config.json and learns that AUTHENTICATION_METHOD is oidc.

  2. The user starts SSO (GET /api/oidc/login). The gateway stores OAuth state (and PKCE verifiers when pkce is configured) in a session cookie and redirects the browser to the IdP.

  3. The user authenticates at the IdP.

  4. The IdP redirects the browser to GET /api/oidc/callback on the gateway with an authorization code.

  5. The gateway exchanges the code with the IdP, validates tokens, and builds the Slurm-web user profile (login, full name, groups from token claims).

  6. The gateway issues a Slurm-web JWT and stores login handoff data in the Flask session (oidc_login), then redirects to /auth/oidc/callback in the frontend (no query parameters).

  7. The frontend route calls GET /api/oidc/session with the session cookie (withCredentials). The gateway returns the JWT and user fields and removes the handoff data from the session.

  8. The frontend stores the JWT and sends it as a Bearer token on API requests.

  9. Agents enforce authorization policy from JWT groups.

Setup

Confidential client (recommended)

Minimal example for /etc/slurm-web/gateway.ini:

[authentication]
enabled=yes
method=oidc

[ui]
host=https://dashboard.example.com/ (1)

[oidc]
issuer=https://idp.example.com/realms/org (2)
client_id=slurm-web (3)
client_secret=CHANGE_ME (4)
subject_claim=preferred_username (5)
groups_claim=groups (6)
1 Public URL of the web UI; used to derive the OIDC redirect callback URI ({ui.host}/api/oidc/callback) unless redirect_uri is set explicitly.
2 OIDC issuer URL used for provider discovery.
3 Client identifier registered at the identity provider.
4 Client secret. You can also use client_secret_file to read the secret from a file.
5 Token claim used as the user login in Slurm-web (preferred_username is common with Keycloak).
6 Token or userinfo claim that lists group names for RBAC (must match IdP mapper).

Add pkce=S256 when the IdP requires or recommends PKCE:

pkce=S256

Allowed values for pkce: S256 (recommended) or plain (legacy IdPs only). When pkce is omitted, PKCE is disabled.

By default, the gateway computes the redirect callback URI from ui.host parameter (in the form {ui.host}/api/oidc/callback). You can also set oidc.redirect_uri explicitly. Either ui.host or oidc.redirect_uri must be set.

Restart the gateway after any change to gateway.ini:

  • Native service

  • Production HTTP server

  • Containers

  • Compose

When using default native service:

# systemctl restart slurm-web-gateway.service

When using production HTTP server:

# systemctl restart slurm-web-gateway-uwsgi.service

When using raw containers:

$ docker restart slurm-web-gateway

With Podman:

$ podman restart slurm-web-gateway

When using the reference Compose stack:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) docker compose restart gateway

With Podman Compose:

$ LOCAL_UID=$(id -u) LOCAL_GID=$(id -g) podman compose restart gateway

See full oidc parameter reference.

Public client

For a public OIDC client (no client secret at the token endpoint), omit client_secret and client_secret_file and set pkce (required):

[oidc]
issuer=https://idp.example.com/realms/org
client_id=slurm-web
pkce=S256
subject_claim=preferred_username
groups_claim=groups

Register the client as public at the IdP. PKCE must be enabled on both sides.

Identity providers

The following sections describe how to register the Slurm-web client at common OpenID Connect identity providers.

Keycloak

This minimal procedure creates a realm client compatible with Slurm-web.

  1. Create or select a realm (for example org).

  2. Create a client:

    • Client ID: slurm-web

    • Client authentication: On (confidential client) or Off (public client)

    • Standard flow: Enabled

    • Valid redirect URIs: https://<gateway-host>/api/oidc/callback

    • Web origins: gateway and UI origins, or + for same-host redirects during development

  3. If using PKCE, set pkce=S256 in gateway.ini and under Advanced → Proof Key for Code Exchange Code Challenge Method, set S256 on the Keycloak client.

  4. Add a Group Membership mapper on the client (or client scope) with claim name groups, included in ID token and userinfo.

  5. Optionally map preferred_username if using subject_claim=preferred_username.

  6. For confidential clients, copy the client secret into gateway.ini (client_secret or secret file).

  7. Set issuer to the realm issuer URL (for example https://idp.example.com/realms/org).

Authentik

Authentik can be used as an OIDC provider with the same gateway settings: confidential or public client, authorization code flow, optional pkce=S256, redirect URI on /api/oidc/callback, and group claims exposed for groups_claim. Refer to Authentik documentation for provider and application setup.

Troubleshooting

Validate the gateway configuration and test sign-in manually:

  1. Confirm issuer, client credentials (if confidential), pkce (if used), and service.session_key (or default file) in gateway.ini. See full oidc parameter reference.

  2. Register the exact callback URL at the identity provider: {ui.host}/api/oidc/callback (including any path prefix), unless redirect_uri is set explicitly.

  3. Restart the gateway.

  4. Open the login page, start SSO, complete IdP login, and verify access to clusters.

  5. In menu:Settings[Account], confirm group memberships match IdP groups and policy permissions.

Some common errors and their potential causes:

Symptom Things to check

Redirect URI mismatch

IdP client redirect URIs must exactly match gateway callback URL (scheme, host, port, path, prefix)

Invalid state / OAuth errors after IdP login

service.session_key missing, unreadable, or changed; multiple gateway instances without shared session secret; cookie blocked; pkce mismatch with IdP

401 on /api/oidc/session (“login session not found”)

UI and API not same origin; session cookie not sent; user refreshed callback page twice (handoff already consumed); HTTP vs HTTPS cookie Secure flag

Gateway fails to start (OIDC / PKCE error)

Public client without pkce; invalid pkce value (only S256 or plain)

Empty groups in JWT / wrong permissions

IdP group mapper; groups_claim; restricted_groups

User cannot sign in

restricted_groups; IdP account not in allowed groups

TLS errors to IdP

verify_ssl, cacert when using private CA
More details
